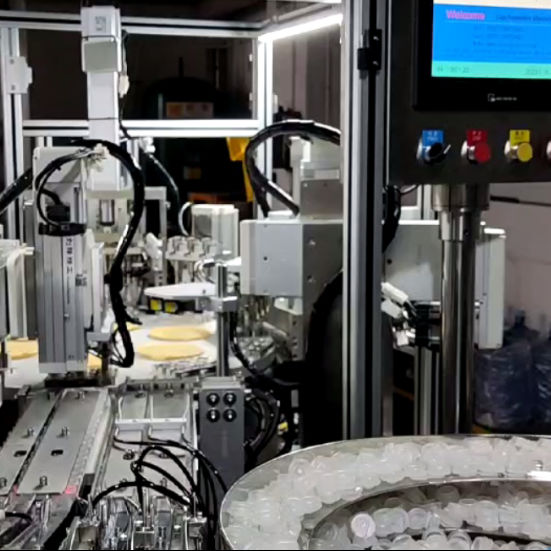

Features
1. This equipment is applied for assembly of medicinal flange cover, duck tongue cover, spring cover and other moisture-proof agents, desiccant bottle caps.
2. Can be used for molecular sieve, silica gel and other granular desiccant automatic filling, can also be used for block desiccant, desiccant core assembly.
3. The equipment has automatic punching and cutting film mechanism (sealing paper), which can reduce the production cost of customers and improve the qualified rate of products.
4. Centralized processing of sealing paper waste to reduce the workload of operators.
5. Connect the desiccant centralized supply bin, reduce the desiccant in the assembly process of moisture absorption and pollution.

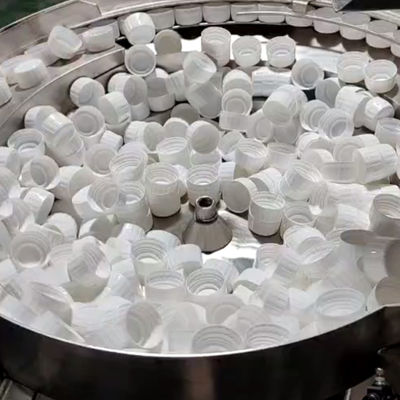

6. Circular cover adopts feeding machine, feeding stable and fast.
7. The main power is composed of servo motor + splitter, with stable running speed and high assembly accuracy.
8. Each assembly step is equipped with testing function to ensure 100% of qualified products.
9. With automatic counting function, easy to output statistics.
10. Good and defective products shall be exported separately.
11. Control system adopts PLC control, man-machine interface operation, reduce the operator's work difficulty.
12. Equipment can be customized according to customers' actual production capacity and product specifications.
13. It can be connected with injection molding machine and image detection machine to form a whole automatic production line.
Properties
|
Applicable products
|
desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap,CRC cap
|
|
Production speed
|
1500-8500pcs/hr (according to customer’s requirement)
|
|
Rate of qualified product
|
Above 99%
|
|
Rate of operation rate
|
Above 95%
|
|
Power source
|
AC380V.50Hz.4kw/hr
|
|
Dimension
|
Actual size varied with different production speed
|
|
Weight
|
About 2000kg
|
|
Operator
|
3sets/2persons,recommend 1set/person
|
