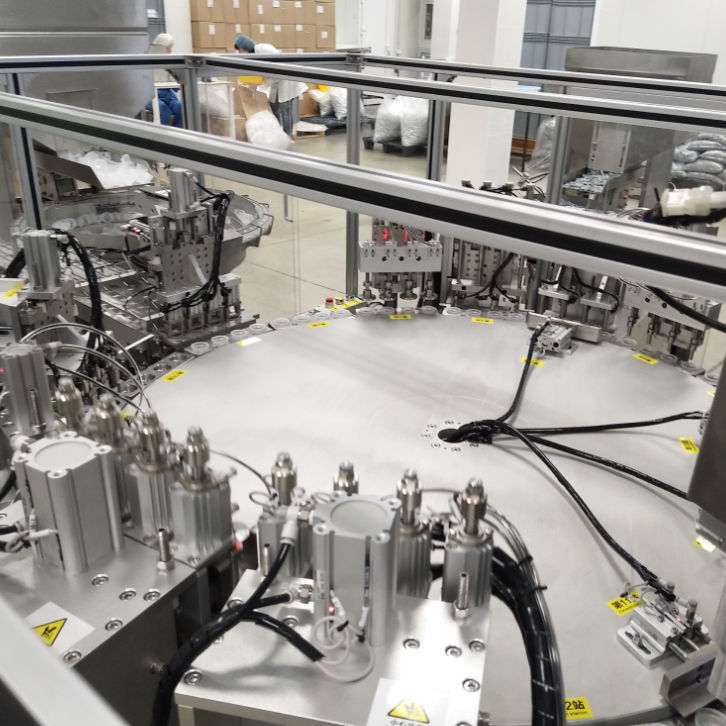

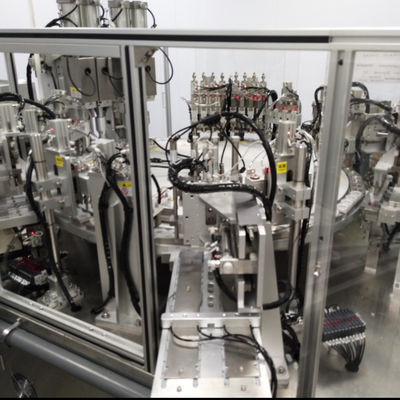

Automatic Euro Cap Assembly Machine 14000-18000pcs/h 50Hz

Marchio:	SENCAN
Numero di modello:	SC-TP-782
MOQ:	1 set
prezzo:	Negotiate the price according actual situation
Termini di pagamento:	T/t, l/c
Capacità di fornitura:	3-20 set

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, ISO9001

Capacità:

14000-18000 pezzi/ora

Modalità operativa:

Automatico

Efficienza della produzione:

Alto

Peso:

500 kg

Operatore:

Singolo o doppio

Frequenza del prodotto:

50Hz

Tipo di montaggio:

Automatico

Capacità di assemblaggio:

4500-12000 all'ora

Intervallo di diametro del tappo:

10-50 millimetri

Interfaccia operativa:

Touch screen

Modello:

Macchina per l'assemblaggio del tappo

Modalità operativa:

Automatico

Caratteristiche:

Alta efficienza e facile utilizzo

Meccanismo:

Servo

Prodotti applicabili:

Euro Cap

Imballaggi particolari:

Cassa in legno

Evidenziare:

Automatic Euro Cap Assembly Machine 14000pcs/h

Euro Cap Assembly Machine 50Hz

High-speed Euro Cap Assembly Machine

Descrizione del prodotto

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
