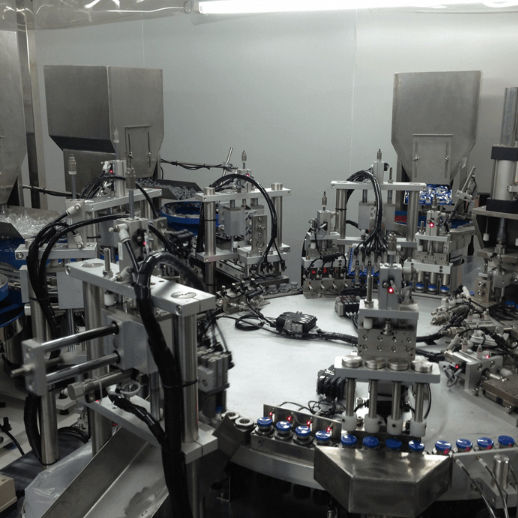

Automatic Cap Lining Machine 380V for Plastic & Metal Caps

Marchio:	SENCAN
Numero di modello:	SC-TP-784
MOQ:	1 set
prezzo:	Negotiate the price according to actual situation
Termini di pagamento:	T/t, l/c
Capacità di fornitura:	3-20 set

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, ISO9001

Caratteristiche del prodotto:

Rivestimento del tappo automatico, velocità regolabile, facile da usare

Materiale di copertura adatto:

Plastico, alluminio, metallo

Sistema di controllo:

Controllo PLC

applicazione del prodotto:

Bevande, farmaceutica, cosmetica e altri settori

Tipo di prodotto:

Macchina per la fabbricazione di tappi

Tasso qualificato:

(requisito del 99%)

Operatore:

1 set/persona

Ritmo:

Linea di produzione di serie

Grado automatico:

Automatico

Tensione del prodotto:

380 V.

Operazione:

Automatico

Tipo di imballaggio:

Cassa in legno

Imballaggi particolari:

Cassa in legno

Evidenziare:

380V automatic cap lining machine

plastic cap lining machine

metal cap lining machine

Descrizione del prodotto

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
