Macchine per l'assemblaggio di articoli di uso quotidiano

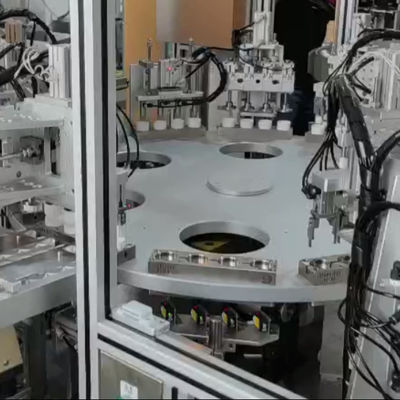

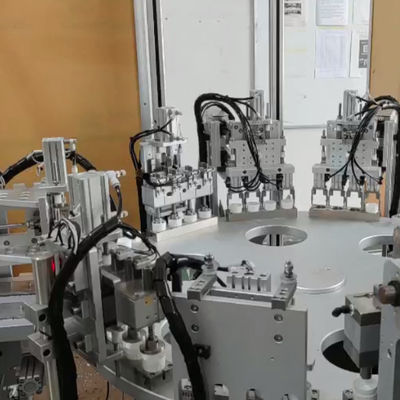

220V Voltage Desiccant Cap Assembly Machine with 100% Qualification Check and Vibrating Feeder for Pharmaceutical Use

Marchio:	SENCAN
Numero di modello:	SC-TP-793
MOQ:	1 set
prezzo:	Negotiate price according to actual situation
Termini di pagamento:	T/t, l/c
Capacità di fornitura:	3-20 set

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, ISO9001

Sistema di alimentazione:

Alimentatore vibrante

Fonte di energia:

Elettrico

Tasso operativo:

98%

Tasso qualificato:

99%

Vantaggio:

Entrambe le dimensioni possono essere assemblate insieme

Prodotto adatto:

Macchina per l'assemblaggio del tappo dell'essiccante

Certificazione del prodotto:

Ce, iso

Livello di automazione:

Completamente automatizzato

Imballaggio:

Cassa in legno

Voltaggio:

220 V.

Dimensione del prodotto:

Grande

Efficienza della produzione:

99%

Alimentazione elettrica:

Elettricità

Potenza del prodotto:

220 V.

Imballaggi particolari:

Cassa in legno

Evidenziare:

220V Voltage Desiccant Cap Assembly Machine

100% Qualification Check Desiccant Cap Assembly Machine

Vibrating Feeder Desiccant Cap Assembly Machine

Descrizione del prodotto

Features

1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.

2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.

3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.

4. Sealing paper waste will be automatically collected to reduce labor of operators.

5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

6. Round shaped caps will be loaded by feeding device which is stable and fast.

7. Each assembling process is well checked, to be sure 100% qualification of qualified products.

8. Equipped with automatic counting function for production statistics.

9. Qualified and unqualified products are released from separate exits.

10. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

11. PLC control system and touch screen, easy operation for operators.

12. Customized according to customer's specifications and capacity requirements.

13. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
