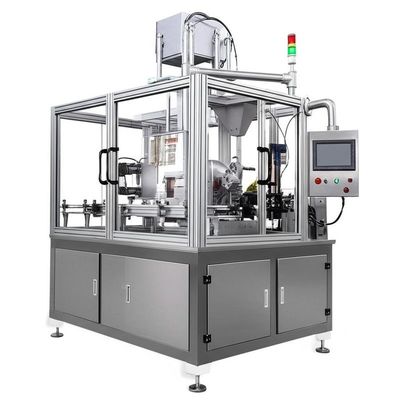

High-Speed Euro Cap Assembly Machine with 14000 Caps per Hour 95% Operation Rate and AC380V Power Source

Marchio:	SENCAN
Numero di modello:	SC-TP-819
MOQ:	1 insieme
prezzo:	Negotiate price according to actual situation
Termini di pagamento:	T/T, L/C
Capacità di fornitura:	2-20 set

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, ISO9001

Controllare:

PLC

Tasso operativo:

96%

Tipo di operazione:

Turetable/meccanico

Materiale del prodotto:

Metallo

Marchio di prodotti:

Euro

Fonte di energia:

AC380V,50Hz

Periodo di garanzia:

1 anno

Forza attiva:

Servomotore o cilindro

Modalità operativa:

Automatico

Modello:

Macchina per l'assemblaggio del tappo

Velocità di assemblaggio:

14000 tappi all'ora

Imballaggi particolari:

Custodia in legno

Evidenziare:

Descrizione del prodotto

High-Performance Euro Cap Assembly Machine for Consistent Output

Product Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished for optimal product protection
Automatic foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defects
PLC control system with user-friendly human-machine interface operation
Servo motor + indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
