High-Speed Euro Cap Assembly Machine with 3600-1400pcs/hr Production and 0.6-0.8MPa Air Pressure for Infusion Caps

Marchio:	SENCAN
Numero di modello:	SC-TP-821
MOQ:	1 set
prezzo:	Negotiate price according to actual situation
Termini di pagamento:	T/T, L/C
Capacità di fornitura:	2-20 set

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, ISO9001

Fonte di energia:

Elettricità

Precisione:

Alto

Meccanismo:

Servo

Tasso soddisfacente:

Sopra il 99%

Configurazione:

Macchina di ispezione

Colore:

Acciaio inossidabile di colore metallico

Metodo operativo:

Tavola giratoria/meccanica

cappucci adatti:

Euro Caps

Tipo di cappuccio:

Euro-cap

Prodotto applicabile:

Cappuccio per infusione

Sistema di controllo:

Touch screen plc +

Interfaccia operativa:

Schermo tattile

Pressione dell'aria:

0,6-0,8 milioni

Imballaggi particolari:

cassa di legno

Evidenziare:

3600-1400pcs/hr Euro Cap Assembly Machine

0.6-0.8MPa Air Pressure Infusion Cap Assembly Machine

Above 95% Operation Rate Automatic Cap Assembly Machine

Descrizione del prodotto

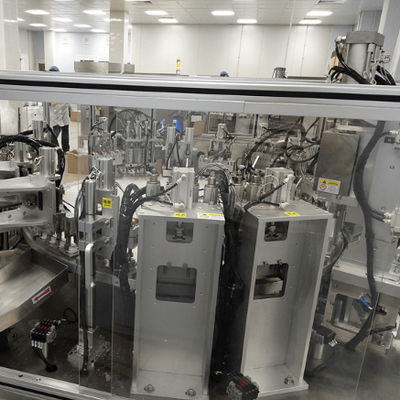

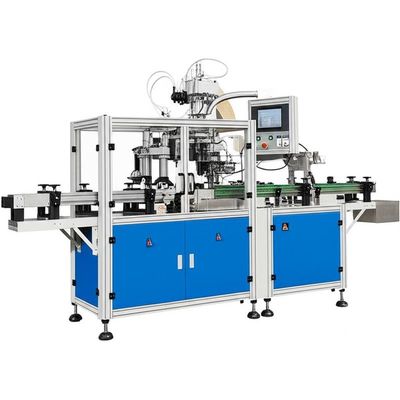

Professional Euro Cap Assembly Machine

A high-performance automated solution for assembling caps on plastic IV infusion bags and bottles, designed to meet rigorous manufacturing standards.

Key Features

Constructed with stainless steel + aluminum alloy, compliant with ISO and GMP standards
Independent workstation drive systems for easy maintenance
Product-contact surfaces polished for optimal product protection
Servo-linked rod structure ensures consistent pressing quality across all workstations
Integrated inspection functions after each assembly process
User-friendly PLC control system with HMI interface
Precision servo motor + indexing drive for high assembly accuracy
Pneumatic power reduces maintenance downtime
Fully customizable to specific production requirements

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400pcs/hr (customizable)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed
Weight	Approximately 2300kg
Operator Requirement	3 sets/2 persons (recommended 1 set/person)
