High Speed Medical Product Assembly Machine for IV Soft Bag Caps and Ports Welding with 2500-8000pph and 98% Operation Rate

Marchio:	SENCAN
Numero di modello:	SC-TP-825
MOQ:	1 set
prezzo:	Negotiate price according to actual situation
Termini di pagamento:	T/T, L/C
Capacità di fornitura:	2-20 set

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, ISO9001

Paese di origine:

Cina

Meccanismo:

Servo

Origine:

Cina

Materico:

Acciaio inossidabile

Installazione:

Facile da installare e mantenere

Drive principale:

Servomotore e disco di indicizzazione

Manipolatore:

Fabbricazione autonoma

Tipo:

Macchine per assemblaggio girante

velocità:

Alto

Imballaggio:

cassa di legno

Imballaggi particolari:

cassa di legno

Evidenziare:

Descrizione del prodotto

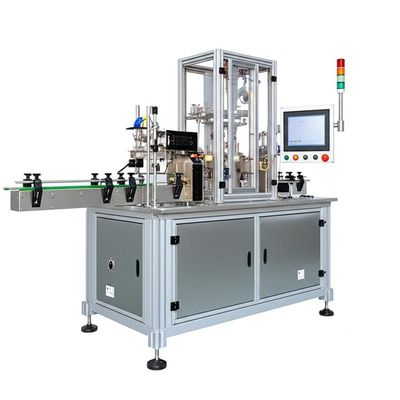

Medical Product Assembly Machine for IV Soft Bag Caps and Ports Welding for Medical Product Manufacturing

Key Features

Automatic assembly of IV soft bag caps and ports welding machine
Main power servo motor + cam indexing drive for precise assembly position and high quality accuracy
Each assembly process includes detection function to ensure high qualified rate
Pneumatic power system reduces maintenance time and requires minimal technical expertise
All driving and inspection systems sourced from top international suppliers
Constructed with stainless steel and aluminum alloy materials, compliant with clean room requirements and GMP standards
PLC control system with user-friendly human-machine interface operation

Technical Specifications

Applicable Products	Nasal swab, nasal collector, nasal sampler
Production Speed	2500-8000pph
Qualified Product Rate	Above 98%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 5kw/h, air pressure 7kg/m³
Dimensions	Actual size varies with production speed
Weight	Approximately 2850kg
Operator Requirement	1 set/person
